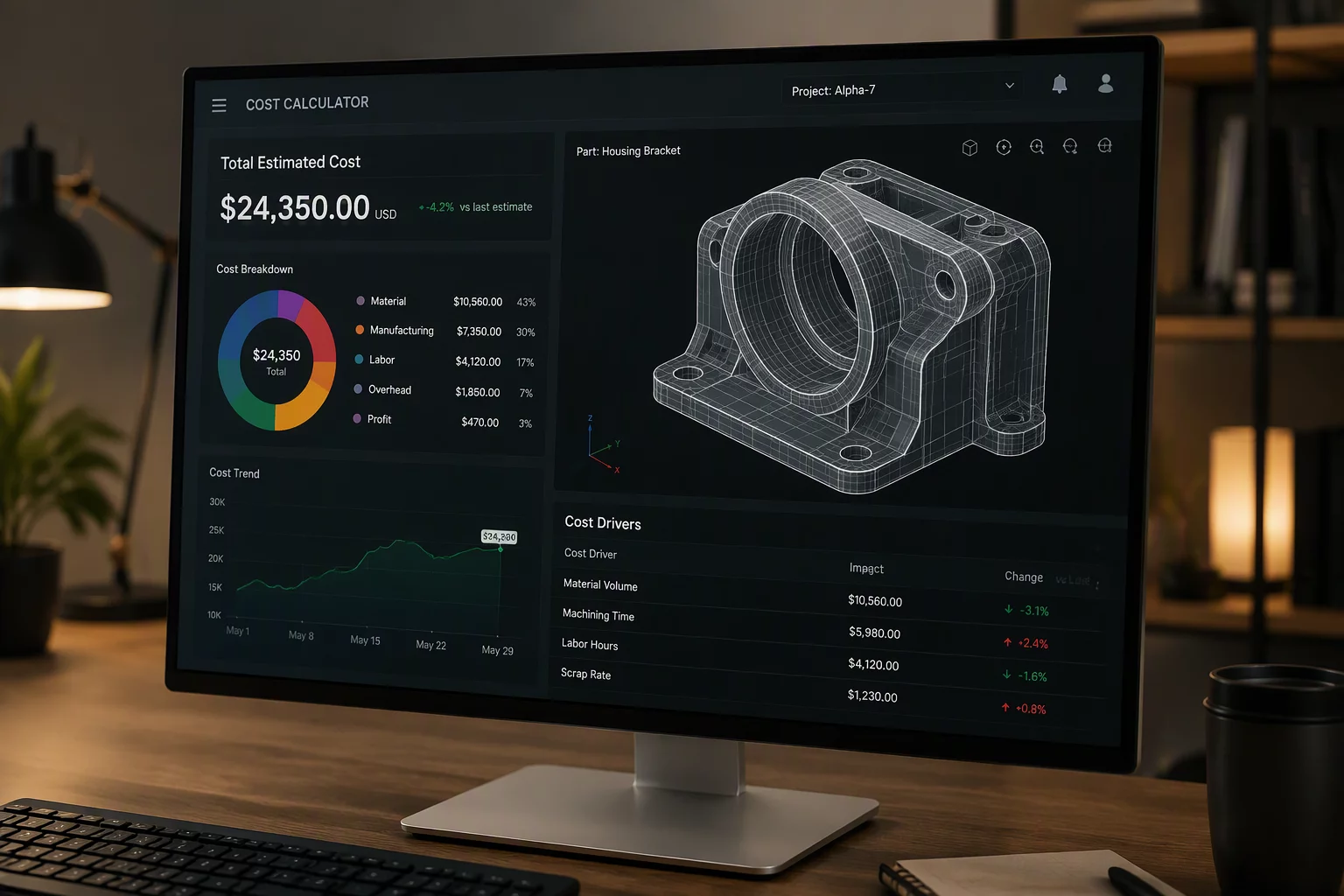

CAD & 3D Engineering Specification

Cost Calculation Integration

Automate production budgeting and real-time material estimation directly within your parametric CAD and additive manufacturing geometry pipelines.

SERVICE FEE $1800
Zero-Tolerance SLA Guaranteed
[NODE::SPEC_VIEWPORT] PIPELINE READY
Cost Calculation Integration
STEP / glTF / FBX / STL TOLERANCE: ±0.005mm

Automated Cost Architecture

Our cost calculation engine integrates directly with CAD pipelines to provide real-time manufacturing cost estimates based on material volume, machine-hour rates, and complexity scoring. The system dynamically adjusts pricing models as geometry parameters change during the design iteration cycle.

Cost Model Components

  1. Material Volume Analysis — Automated bounding box and true mesh volume extraction for raw material cost projection.
  2. Machine-Hour Rate Engine — Dynamic rate cards for CNC, SLS, SLA, and FDM processes with regional pricing variations.
  3. Complexity Scoring Algorithm — Geometric complexity index derived from face count, curvature variance, and support structure requirements.
  4. Overhead & Margin Calculator — Configurable overhead multipliers and profit margin templates per client tier.

The integrated cost pipeline enables instant quoting directly from the CAD viewport, reducing estimation turnaround from days to seconds while maintaining accuracy within 3% of final production invoices.

Technical Parameters

COST ENGINE Real-Time Volume Parser
ACCURACY BAND ±3% Production Cost
CURRENCY SUPPORT USD, EUR, GBP, JPY
API LATENCY < 200ms Per Quote

Package Deliverables

The cost calculation integration package includes the following components:

REST API Gateway JSON-based cost estimation endpoints with OAuth2 authentication.
Rate Card Manager Admin panel for machine-hour rates, material costs, and margin templates.
Quote Export Module PDF, CSV, and JSON quote generation with client branding.
Integration Docs Complete API reference, SDK guides, and webhook configuration manual.

Service FAQ & Integration Details

The engine executes an automated pre-flight healing algorithm to fix inverted normals and close open boundaries prior to computing exact solid volume, returning diagnostic warnings if geometry requires manual CAD repair.

Yes. Pricing matrices support sliding discount scales, machine setup fees, post-processing charges, and batch quantity breakpoints configurable via the administration panel.
